- Create the Quagga Server
- GNS3 Topology / IP Allocation.
- Configuring Quagga
I’ve been meaning to play with Quagga for sometime. One of the administrators of the Quagga Project is an old friend of mine - I’ve had many debates with him over IRC, Facebook and Twitter over the years. Yet despite my interest in the networking field, I’ve not spent any time actually working with Quagga.
This tutorial presupposes some basic knowledge of Cisco networking, Linux, GNS3, and Virtualbox. This means that in order to follow this tutorial you will need the following on your machine. By the end of the tutorial you will have configured OSPF and BGP (IPv4 only) and established full connectivity between three hosts.
- GNS3. Additionally, you will need a Cisco IOS image to use with GNS3 for the Cisco elements.
- An Ubuntu Server base install. For this example, I’m using Ubuntu 16.04.1 LTS.
- 18th Feb 2017 - First draft published online.
Create the Quagga Server
I have a very basic (and by basic I mean default install, no services at all) Ubuntu installation in my VirtualBox environment. I use this to help clone Ubuntu setups. This VirtualBox VM is setup so by default it has access to the internet through the single network interface. The first step is to clone this server in VirtualBox - copying the images. This is done by selecting the Ubuntu Base image, right clicking on the entry and selecting clone.

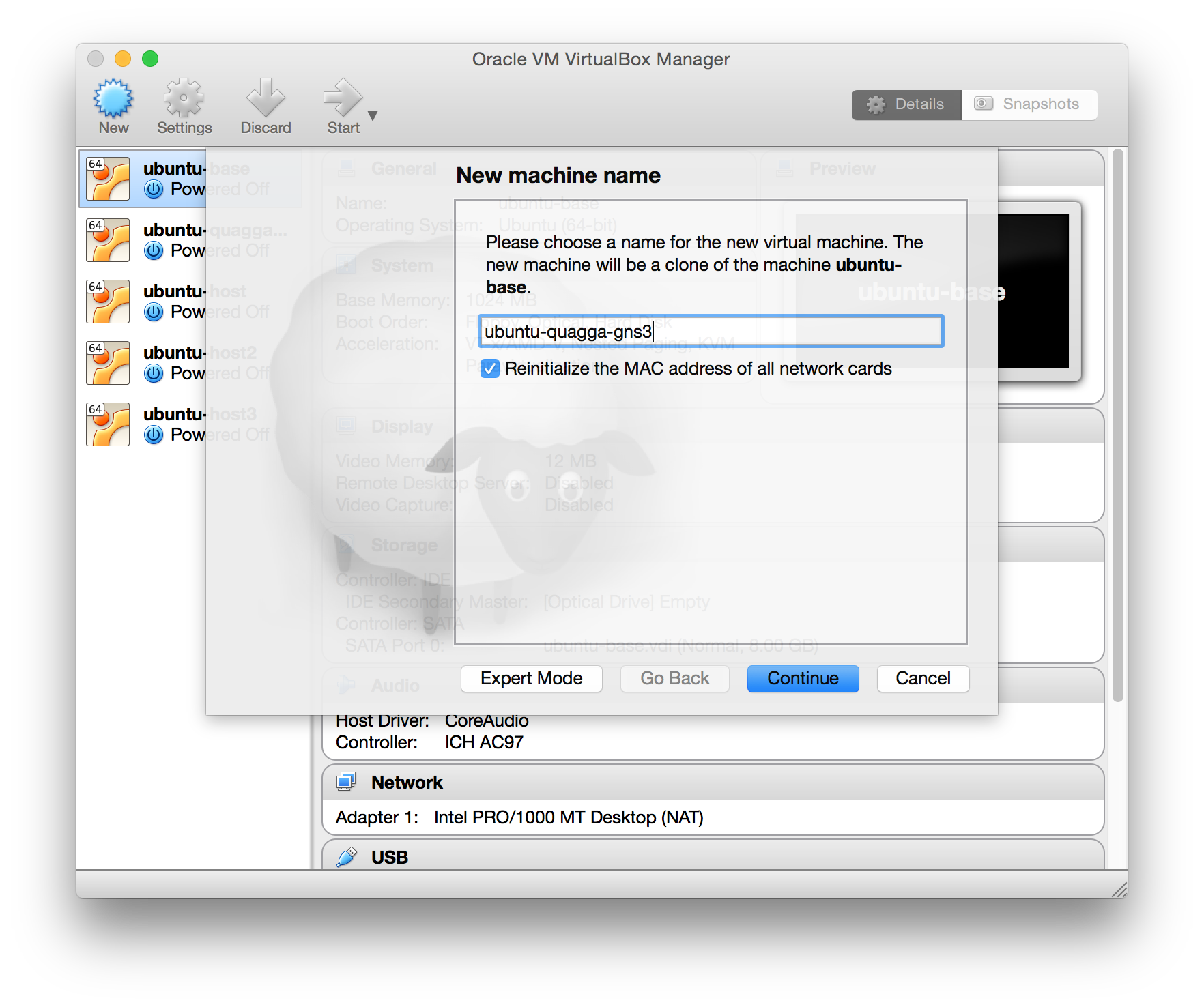

On the first page you need to define the name of the VirtualBox server (this is important, so hold onto that information for later):

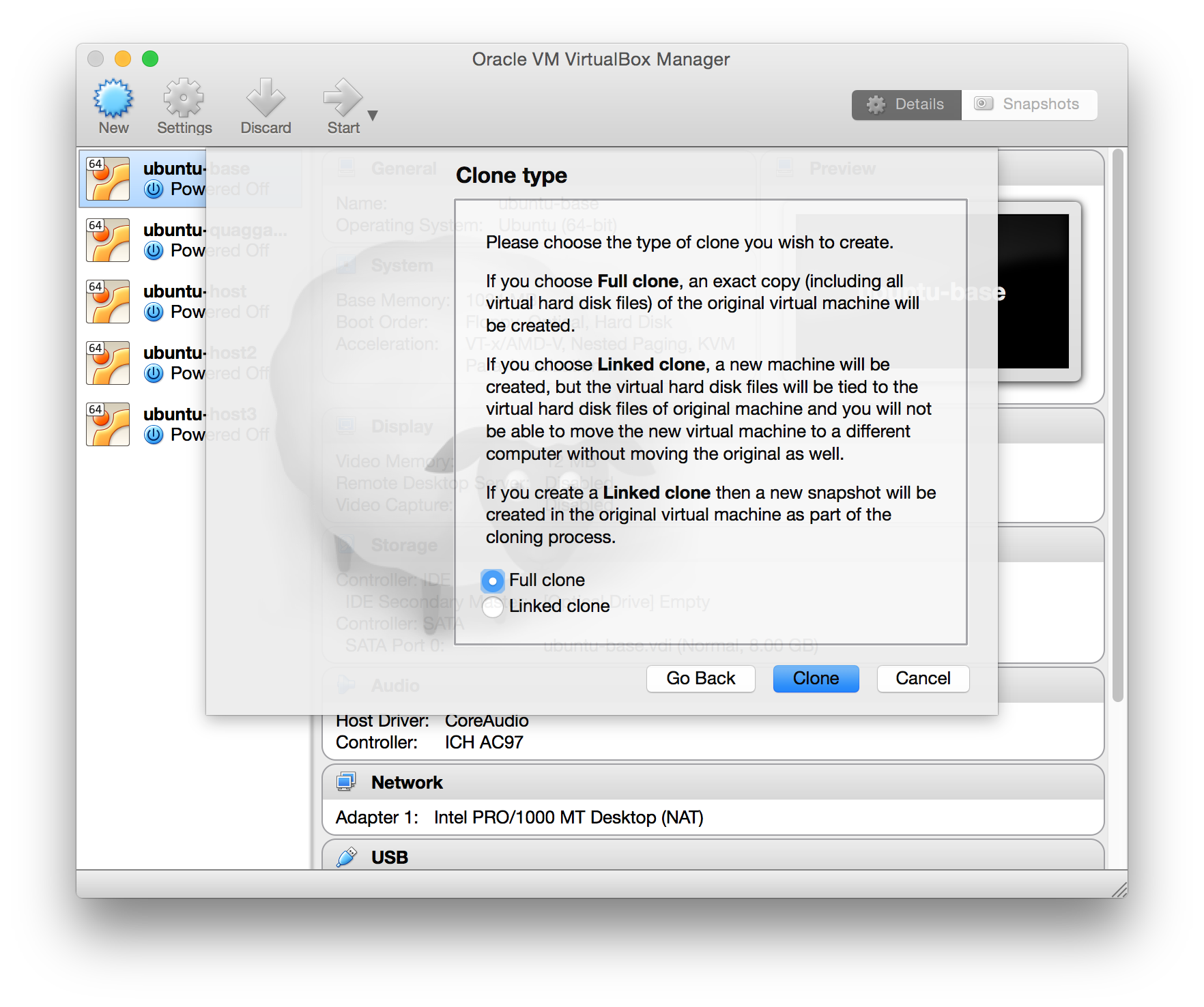

I typically go for Full Clone, but you can go for Linked Clone if you know what you’re doing:
Once that’s complete, boot up the VM. Log into the VM and then run the command
sudo apt-get install quagga
And you now have Quagga installed on the machine.

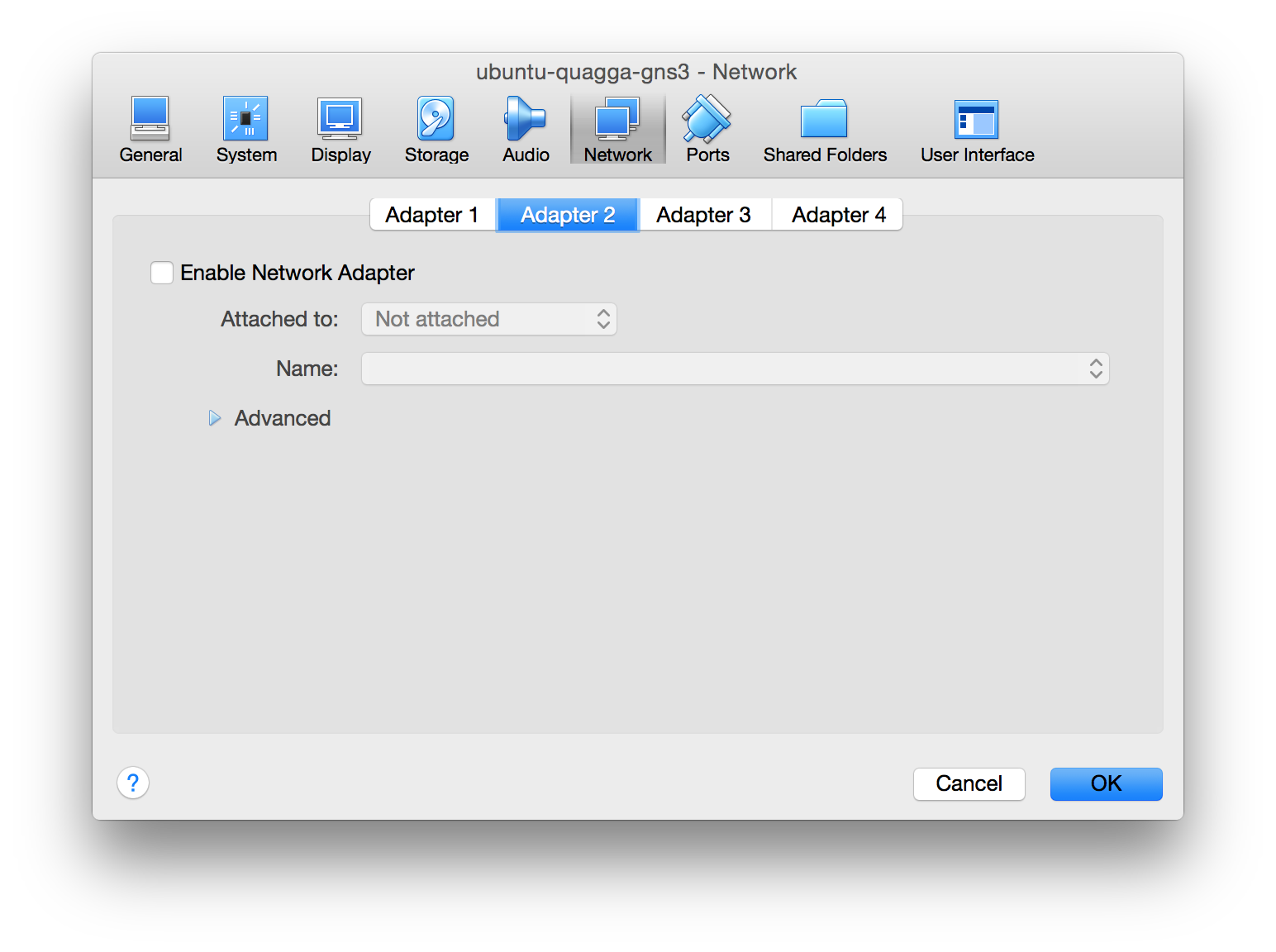

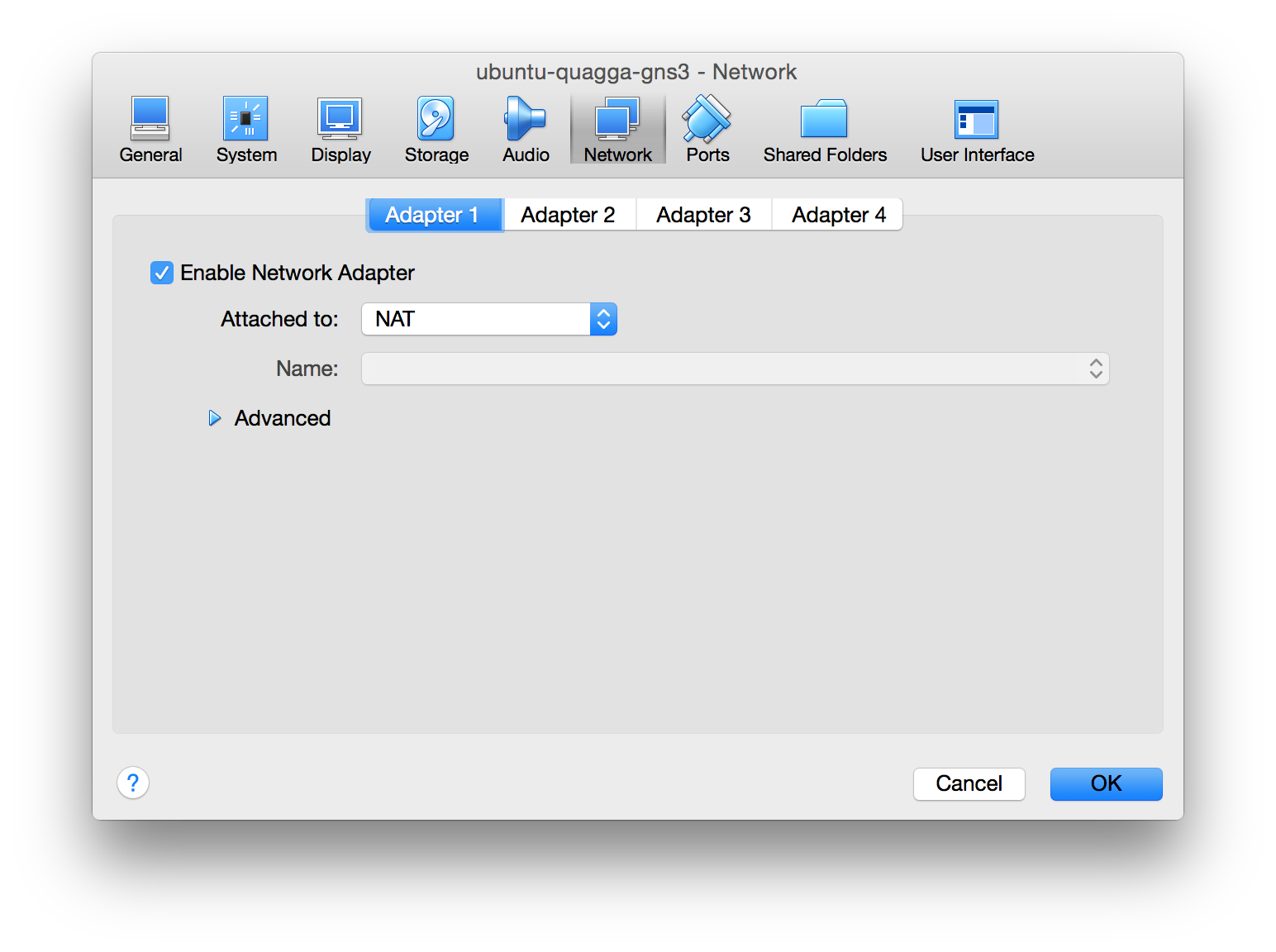

The next step is to halt the quagga server, and then change the network configuration. If you right click on the server, select Settings and go to Network you will see that Adapter1 is enabled, and attached to NAT. If you select Adapter2 you will see it’s not attached to anything.
Before we move on, we need to detach the first adapter as by unchecking the Enable Network Adapter box (Alternatively, you can set this to Generic Driver if you want, but GNS3 will do that for you anyway in the next stage).

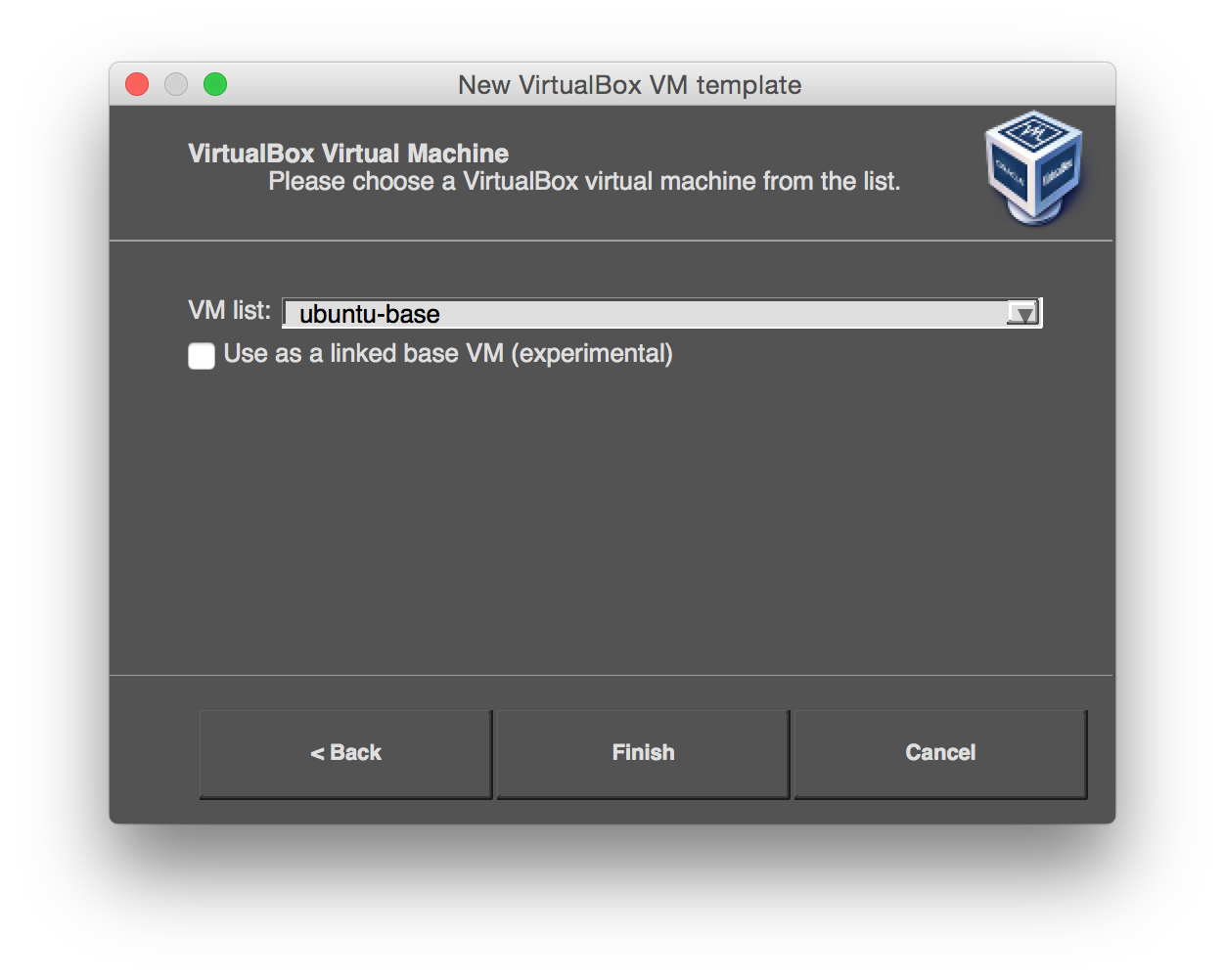

Finally, we need to add the server to GNS3. In GNS3, go GNS3->Preferences->VirtualBox VMs and select New. A Dropdown list of all the VMs in Virtualbox will be shown and you can select the instance you’ve installed Quagga on.

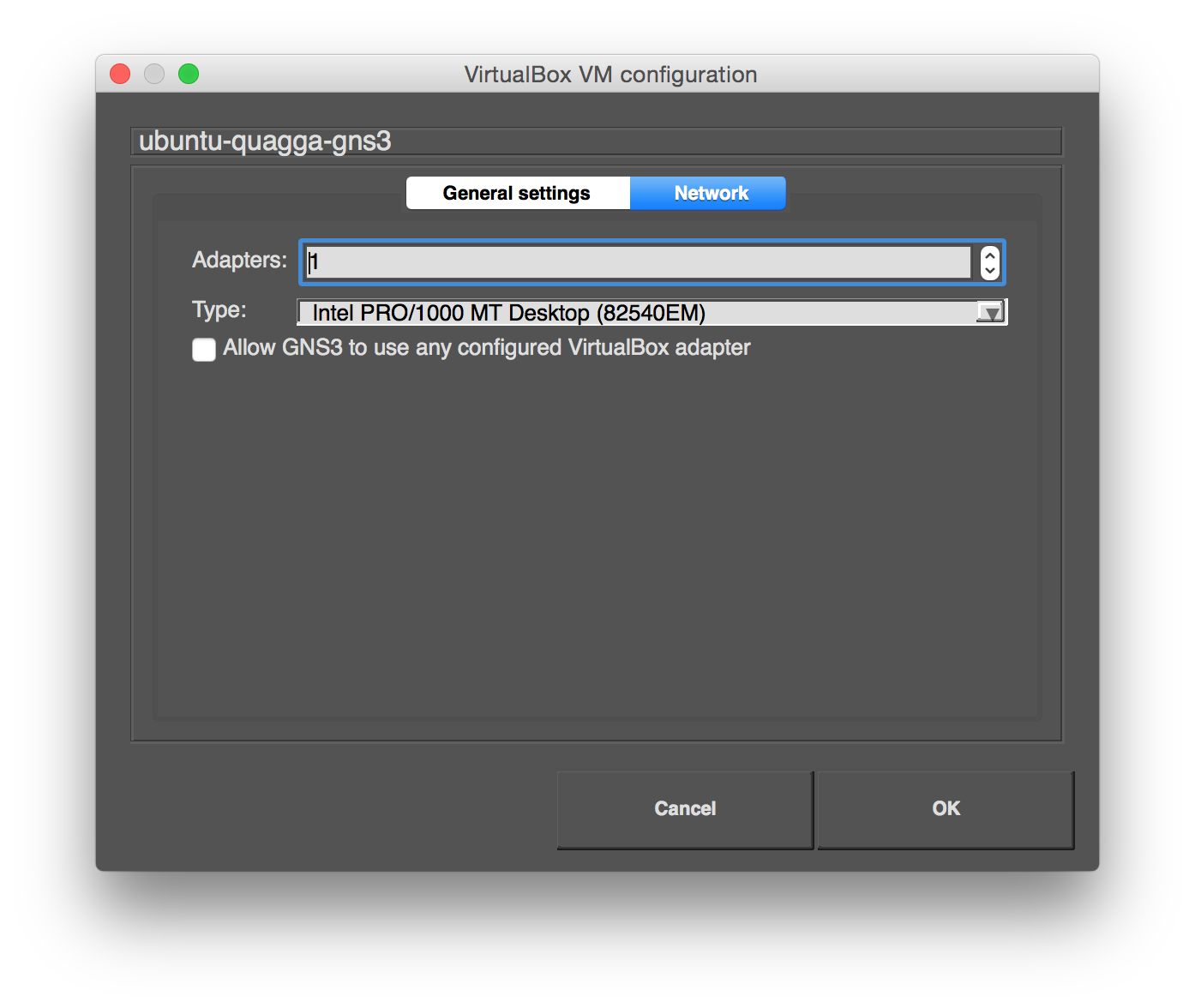

However, this typically adds the VM with a single interface - you need multiple interfaces for the lab set so select the VM, then click Edit and on the Network screen, increase the number of Adapters to 4.
GNS3 Topology / IP Allocation.

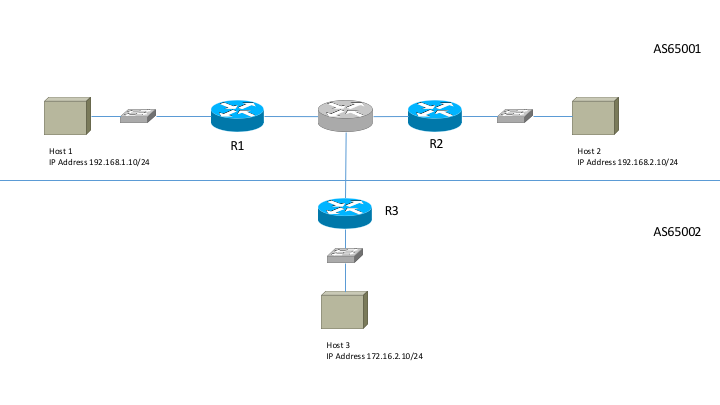

Before we go on, the next step is to layout the topology for this lab. As we’re trying to cover both OSPF and BGP, we will set up three Cisco routers as well as the Quagga router:
In the diagram above, the Quagga router is the Grey router. R1, R2 and R3 are all Cisco routers.
IP Allocations are as follows:
|192.168.1.0/24||Host 1 to R1|
|192.168.2.0/24||Host 2 to R2|
|192.168.3.0/25||Used for Loopbacks on R1 and R2|
|192.168.3.128/30||R1 to Quagga router|
|192.168.3.132/30||R2 to Quagga router|
|172.16.1.0/24||BGP Peering LAN between Quagga and R3|
|172.16.2.0/24||Host 3 to R3|
|172.16.3.3/32||Loopback on R3|
R1, R2 and Quagga are all in AS65001 and will use OSPF for dynamic routing accross the PtP links. The routes in AS65001 can all be summarised under 192.168.0.0/22 and this summary route will be used in BGP peering between Quagga and R3. The routes with AS65002 will be advertised to the Quagga router, which will then redistribute those routes into the IGP to deliver full connectivity.
Within GNS3, I set things up so that Ethernet1 on the Quagga device connects to R1, Ethernet2 to R2 and Ethernet3 to R3. Note though that as Ubuntu 16 uses systemd, the interfaces aren’t eth1, eth2 and eth3.
Quagga is not a single server on a Linux box, but actually consists of several seperate daemons, each running a particular routing protocol. By default, none of the daemons are configured to run so the first thing we need to do is turn on the specific daemons we require. Using your preferred editor of choice (vim, emacs, pico) edit /etc/quagga/daemons to read as follows
zebra=yes bgpd=yes ospfd=yes ospf6d=no ripd=no ripngd=no isisd=no babeld=no
Then change into /etc/quagga and do the following:
sudo touch zebra.conf bgpd.conf ospfd.conf sudo chown quagga.quaggavty zebra.conf bgpd.conf ospfd.conf
Then restart the quagga service
sudo /etc/init.d/quagga restart
Finally, you need to enable ip forwarding in the Linux kernel:
sysctl -w net.ipv4.ip_forward=1
If this has all been done correctly, it should then be possible to connect and manage the quagga instances using vtysh.
This moves you from the UNIX command line into a more Cisco IOS style of environment. However, there is one last niggle. For some reason, the vtysh interface defaults to using less as its pager of choice. You will find it annoying hitting q all the time so I suggest changing the pager to use more. You can do this from the command line by executing the following:
Then enter the quagga configuration mode - you may need to run this as sudo.
This environment is a little like Cisco, but not completely. Entering configuration mode is done in the same way you would on a Cisco device
interface enp0s8 description ethernet1 ip address 192.168.3.130/30 ! interface enp0s9 description ethernet2 ip address 192.168.3.134/30 ! router ospf network 192.168.0.0/22 area 0.0.0.0
The use of enp0s8 and enp0s9 is a feature of systemd and the fact we’re using Ubuntu 16 - if you’re using an earlier version, the interface names will be different. You can then save the configuration in a similar way to a Cisco IOS device:
ubuntu# wr Building Configuration... Configuration saved to /etc/quagga/zebra.conf Configuration saved to /etc/quagga/ospfd.conf Configuration saved to /etc/quagga/bgpd.conf [OK]
You can now verify OSPF adjacencies are up in the vtysh environment:
ubuntu# sh ip ospf neighbor Neighbor ID Pri State Dead Time Address Interface RXmtL RqstL DBsmL 192.168.3.1 1 Full/DR 30.647s 192.168.3.129 enp0s8:192.168.3.130 0 0 0 192.168.3.2 1 Full/DR 37.764s 192.168.3.133 enp0s9:192.168.3.134 0 0 0 ubuntu# show ip route Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF, I - IS-IS, B - BGP, P - PIM, A - Babel, > - selected route, * - FIB route C>* 127.0.0.0/8 is directly connected, lo O>* 192.168.1.0/24 [110/11] via 192.168.3.129, enp0s8, 00:08:17 O>* 192.168.2.0/24 [110/11] via 192.168.3.133, enp0s9, 00:08:21 O>* 192.168.3.1/32 [110/11] via 192.168.3.129, enp0s8, 00:08:17 O>* 192.168.3.2/32 [110/11] via 192.168.3.133, enp0s9, 00:08:21 O 192.168.3.128/30 [110/10] is directly connected, enp0s8, 00:08:21 C>* 192.168.3.128/30 is directly connected, enp0s8 O 192.168.3.132/30 [110/10] is directly connected, enp0s9, 00:08:26 C>* 192.168.3.132/30 is directly connected, enp0s9
There are two parts to the BGP configuration - again, this is quite similar to the Cisco style, though there are a couple of differences.
interface enp0s10 description ethernet3 - BGP Peering ip address 172.16.1.1/24 router bgp 65001 bgp router-id 192.168.3.134 network 192.168.0.0/22 neighbor 172.16.1.3 remote-as 65002 ! router ospf redistribute bgp ! ip route 192.168.0.0/22 Null0
BGP show commands are very similar:
buntu# show ip bgp sum BGP router identifier 192.168.3.134, local AS number 65001 RIB entries 5, using 560 bytes of memory Peers 1, using 4568 bytes of memory
Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd 172.16.1.3 4 65002 10 10 0 0 0 00:06:06 2 Total number of neighbors 1 ubuntu# show ip bgp BGP table version is 0, local router ID is 192.168.3.134 Status codes: s suppressed, d damped, h history, * valid, > best, = multipath, i internal, r RIB-failure, S Stale, R Removed Origin codes: i - IGP, e - EGP, ? - incomplete Network Next Hop Metric LocPrf Weight Path *> 172.16.2.0/24 172.16.1.3 0 0 65002 i *> 172.16.3.3/32 172.16.1.3 0 0 65002 i *> 192.168.0.0/22 0.0.0.0 0 32768 i Total number of prefixes 3 ubuntu# show ip bgp nei 172.16.1.3 routes BGP table version is 0, local router ID is 192.168.3.134 Status codes: s suppressed, d damped, h history, * valid, > best, = multipath, i internal, r RIB-failure, S Stale, R Removed Origin codes: i - IGP, e - EGP, ? - incomplete Network Next Hop Metric LocPrf Weight Path *> 172.16.2.0/24 172.16.1.3 0 0 65002 i *> 172.16.3.3/32 172.16.1.3 0 0 65002 i Total number of prefixes 2 ubuntu# show ip bgp nei 172.16.1.3 BGP neighbor is 172.16.1.3, remote AS 65002, local AS 65001, external link BGP version 4, remote router ID 172.16.3.3 BGP state = Established, up for 00:06:38 Last read 00:00:45, hold time is 180, keepalive interval is 60 seconds Neighbor capabilities: 4 Byte AS: advertised Route refresh: advertised and received(old & new) Address family IPv4 Unicast: advertised and received Graceful Restart Capabilty: advertised Message statistics: Inq depth is 0 Outq depth is 0 Sent Rcvd Opens: 1 1 Notifications: 0 0 Updates: 1 1 Keepalives: 8 8 Route Refresh: 0 0 Capability: 0 0 Total: 10 10 Minimum time between advertisement runs is 30 seconds For address family: IPv4 Unicast Community attribute sent to this neighbor(both) 2 accepted prefixes Connections established 1; dropped 0 Last reset never Local host: 172.16.1.1, Local port: 53632 Foreign host: 172.16.1.3, Foreign port: 179 Nexthop: 172.16.1.1 Nexthop global: fe80::a00:27ff:fe11:9481 Nexthop local: :: BGP connection: non shared network Read thread: on Write thread: off
And finally we can see that host3 can reach host1 and host2:
thomas@ubuntu:~$ ping -c 5 192.168.1.10 PING 192.168.1.10 (192.168.1.10) 56(84) bytes of data. 64 bytes from 192.168.1.10: icmp_seq=1 ttl=61 time=79.2 ms 64 bytes from 192.168.1.10: icmp_seq=2 ttl=61 time=67.3 ms 64 bytes from 192.168.1.10: icmp_seq=3 ttl=61 time=77.6 ms 64 bytes from 192.168.1.10: icmp_seq=4 ttl=61 time=74.6 ms 64 bytes from 192.168.1.10: icmp_seq=5 ttl=61 time=80.1 ms --- 192.168.1.10 ping statistics --- 5 packets transmitted, 5 received, 0% packet loss, time 4007ms rtt min/avg/max/mdev = 67.353/75.798/80.153/4.638 ms thomas@ubuntu:~$ ping -c 5 192.168.2.10 PING 192.168.2.10 (192.168.2.10) 56(84) bytes of data. 64 bytes from 192.168.2.10: icmp_seq=1 ttl=61 time=35.2 ms 64 bytes from 192.168.2.10: icmp_seq=2 ttl=61 time=43.2 ms 64 bytes from 192.168.2.10: icmp_seq=3 ttl=61 time=72.3 ms 64 bytes from 192.168.2.10: icmp_seq=4 ttl=61 time=106 ms 64 bytes from 192.168.2.10: icmp_seq=5 ttl=61 time=78.3 ms --- 192.168.2.10 ping statistics --- 5 packets transmitted, 5 received, 0% packet loss, time 4006ms rtt min/avg/max/mdev = 35.266/67.233/106.897/25.761 ms thomas@ubuntu:~$ traceroute 192.168.1.10 traceroute to 192.168.1.10 (192.168.1.10), 30 hops max, 60 byte packets 1 172.16.2.1 (172.16.2.1) 9.355 ms 9.164 ms 8.881 ms 2 172.16.1.1 (172.16.1.1) 20.742 ms 33.116 ms 32.974 ms 3 192.168.3.129 (192.168.3.129) 32.824 ms 43.471 ms 54.863 ms 4 192.168.1.10 (192.168.1.10) 65.912 ms 76.476 ms 87.405 ms
So we now have a fully connected network using Quagga where BGP and OSPF is required to enable the connectivity between all the devices.
Hopefully that was useful for some of you. If you have any feedback, please email me at firstname.lastname@example.org - I’d love to hear from you.
